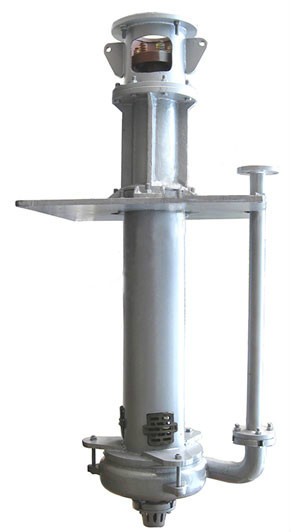

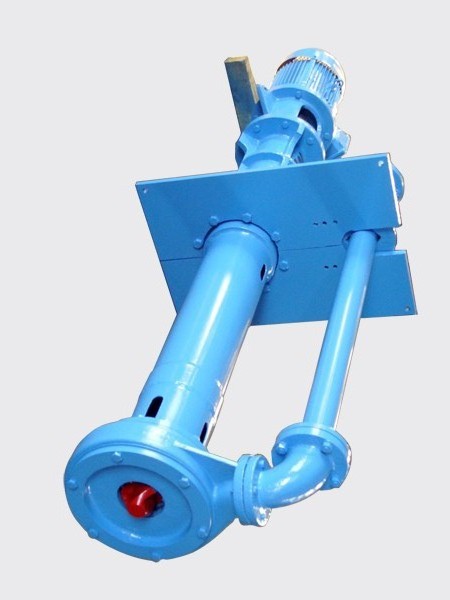

YZ Series are vertical single-stage, single-suction cantilever centrifugal pump, the impeller is semi-open type, with the mixing blades at the suction side of impeller.
The series pump is mainly used for environmental protection, municipal engineering, thermal power plants, coking plants, oil refineries, steel mills, mining, pulp and paper, cement factories, food plants, printing and dyeing industry, pumping concentrated liquid, thickened oil, mud, mortar, drift sand, urban sewage sludge and corrosive liquids.
The YZ slurry pump is also able to convey high - temperature (500 ° C) of kerosene, crude oil, asphalt etc.
Flow：6-600 m3/h
Head：2.4-61m
Concentration：≤50%
PH:2-14
Power：0.75-90KW
Temperature：≤500℃
Length below liquid level：0.6-2.0m(Option: Additional Suction Pipe)
Material：High-chromium alloy Cr26、Cr28、Cr30A、A49
80YZ80 - 20A
80 - Diameter of Pump Outlet(mm)
YZ - Vertical Slurry Pump
80 - Flow (m3/hr)
20 - Head (m)
A - Impeller Outer Diameter after The First Cutting
1. The pump shaft below liquid level have enough rigidity.
2. The pump has neither bearings between impeller and pump casing nor shaft seal.
3. The pump can convey the medium with greater concentration of solid particles.
4. The pump is connected to the motor by flexible coupling and the rotation direction viewing from the prime mover is clockwise.
