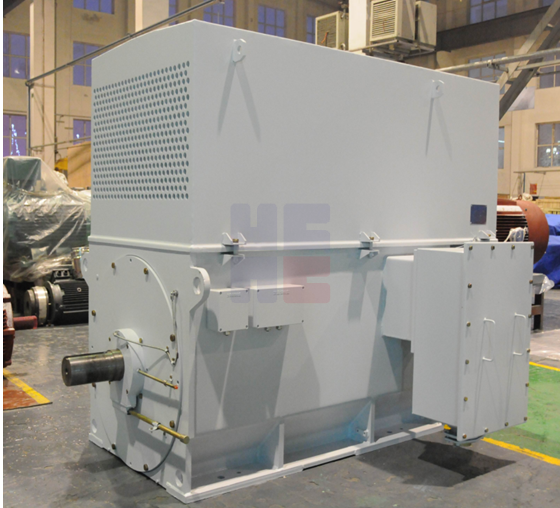

YKK Series High Voltage Three Phase Induction Electric Motor

YKK (6kV,10kV) series high voltage 3-phase induction motors has the advantages of high efficiency, energy saving

YKK (6kV,10kV) series high voltage 3-phase induction motors has the advantages of high efficiency, energy saving, low noise, small vibration, high reliability, long service life and convenient installation and maintenance.

YKK series electric motors are three phase induction motors which are single speed, continuous working duty, high voltage and cage type. Frames H355-H400 are casting iron structure, frames H450-H630 are welded-steel plate structure. The motors adopt F Class Insulation, B Class temperature rise to greatly increase the operational reliability and service life. The motors can drive various mechanical equipment, such as water pump, fan blower, and compressor, etc.

H355-1000, Power:220-8000kW, Protection Degree: IP44、IP54、IP55, Insulation Class: F, Cooling method: Code IC611, Ambient Temperature of -15℃~+40℃, Altitude not exceeding 1000m above sea level. Installation dimensions of this series motor are the same as YKK series with the same voltage level.

This series motor adopts box structure, and the frame is welded from steel plate into box shape, which is light in weight and good in rigidity. An air-to-air cooler is installed on the top of the motor. The stator winding uses insulation Class F material, adopts reliable anti corona measures for 10kV motor, the winding end is reliably fixed and bound, and vacuum pressure impregnation solvent-free paint (VPI) process is adopted. Therefore, the motor has good insulation performance, high mechanical strength, strong moisture-proof ability and long service life.This series motor conform to JB-T12729-2016YKK, YXKK series (10kV) 3-phase induction motors technical conditions and energy efficiency classification (frame H400-630) and JB-T12730-2016YKK,YXKK series (6kV) 3-phase induction motors technical conditions and secondary energy efficiency standard of energy efficiency classification (frame H355-630)

This series motor is mainly applicable to fans, pumps, compressors, crushers, chip cutting machines, transportation machinery and other general mechanical equipment or other similar mechanical equipment in the industries of petroleum, chemical industry, coal, power station, metallurgy, transportation, textile, medicine, grain processing, etc.
