Corrosion Resisting Slurry Pump

Single-stage single-suction centrifugal cantilever pump with ultra-high-molecular-weight polyethy lene (EHMWPE) of 8-20mm thickness lining used for parts conveying the medium. UHMWPE is a new corrosion and wear resistant engineering plastic for manufacturing pumps and has, among all plastics, such merits as remarkable wear resistance.

Send Inquiry

Description

Characteristics of the pump: applicable for different working conditions, for instance, conveying acid or alkali clear liquid or slurry; caustic ore pulp in smelting industry; all diluted acids in sulphuric acid industry; waste waters in environmental protection industry. The pump is resistant to corrosion and wear and has a wide range of application. Applicable media: sulphuric acid below 80%, nitric acid below 50%, hydrochloric acid of various concentrations, clear liquid or slurry of liquid caustic soda. Working temperature -20°C~80°C (for special demand, up to 105°C. While using modified materials). The pump impeller is half-open with K-type dynamic steel.

Structural Representation

product-1077-603

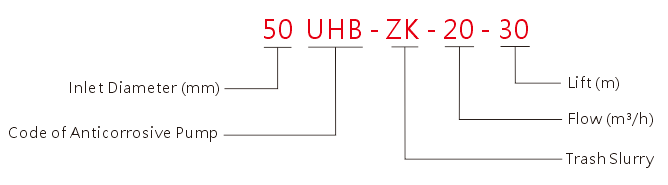

Model Specification

product-668-185

Models • Performance • Parameters

Model	Inlet/Outlet (mm)	Flow (m³/h)	Lift (m)	Motor Power (kw)	Rate of Rotation (r/min)
32UHB-ZK-5-10	32×25	5	10	1.1	2900
32UHB-ZK-5-20	32×25	5	20	1.5	2900
32UHB-ZK-10-15	32×25	10	15	2.2	2900
32UHB-ZK-10-20	32×25	10	20	2.2	2900
40UHB-ZK-10-30	40×32	10	30	3	2900
40UHB-ZK-15-25	40×32	15	25	3	2900
40UHB-ZK-18-20	40×32	18	20	3	2900
50UHB-ZK-15-20	50×40	15	20	3	2900
50UHB-ZK-20-30	50×40	20	30	5.5	2900
50UHB-ZK-10-35	50×40	10	35	5.5	2900
65UHB-ZK-25-32	65×50	25	32	5.5	2900
65UHB-ZK-30-32	65×50	30	32	7.5	2900
65UHB-ZK-10-40	65×50	10	40	5.5	2900
65UHB-ZK-10-50	65×50	10	50	11	2900
65UHB-ZK-20-50	65×50	20	50	11	2900
65UHB-ZK-30-50	65×50	30	50	15	2900
65UHB-ZK-15-60	65×50	15	60	11	2900
80UHB-ZK-40-20	80×65	40	20	7.5	2900
80UHB-ZK-45-35	80×65	45	35	11	2900
80UHB-ZK-40-50	80×65	40	50	15	2900
80UHB-ZK-50-50	80×65	50	50	15-18.5	2900
100UHB-ZK-60-35	100×80	60	35	18.5	2900
100UHB-ZK-60-50	100×80	60	50	22-30	2900
100UHB-ZK-80-30	100×80	80	30	18.5-22	2900
100UHB-ZK-100-40	100×80	100	40	30-37	2900
125UHB-ZK-120-32	125×100	120	32	30	2900
125UHB-ZK-140-28	125×100	140	28	30-37	2900
150UHB-ZK-120-25	150×125	120	25	22-30	1450
150UHB-ZK-220-25	150×125	220	25	37-45	1450
150UHB-ZK-150-40	150×125	150 100	40 18	45 15-18.5	1450 980
150UHB-ZK-200-35	150×125	200 135	35 16	55 18.5	1450 980
150UHB-ZK-300-20	150×125	300 200	20 10	55 18.5	1450 980
200UHB-ZK-300-32	200×150	300 200	32 15	75 22-30	1450 980
200UHB-ZK-350-30	200×150	350 240	30 15	75-90 30	1450 980
200UHB-ZK-400-28	200×150	400 270	28 13	90 30	1450 980
200UHB-ZK-550-30	200×150	550 371	30 14	110-132 30-37	1450 980
250UHB-ZK-600-32	250×200	600	32	110	1450
250UHB-ZK-600-50	250×200	600	50	160	1450
250UHB-ZK-800-32	250×200	800	32	132	1450
250UHB-ZK-800-50	250×200	800	50	200	1450
300UHB-ZK-1000-32	300×250	1000	32	160	1450
300UHB-ZK-1000-50	300×250	1000	50	250	1450
300UHB-ZK-1200-32	300×250	1200	32	200	1450
300UHB-ZK-1200-50	300×250	1200	50	315	1450
350UHB-ZK-1400-32	350×300	1400	32	250	980
350UHB-ZK-1400-50	350×300	1400	50	355	980
350UHB-ZK-1600-32	350×300	1600	32	250	980
350UHB-ZK-1600-50	350×300	1600	50	400	980
400UHB-ZK-2000-32	400×350	2000	32	315	980
400UHB-ZK-2000-50	400×350	2000	50	500	980
400UHB-ZK-2300-32	400×350	2300	32	355	980
400UHB-ZK-2300-50	400×350	2300	50	560	980
